Description:

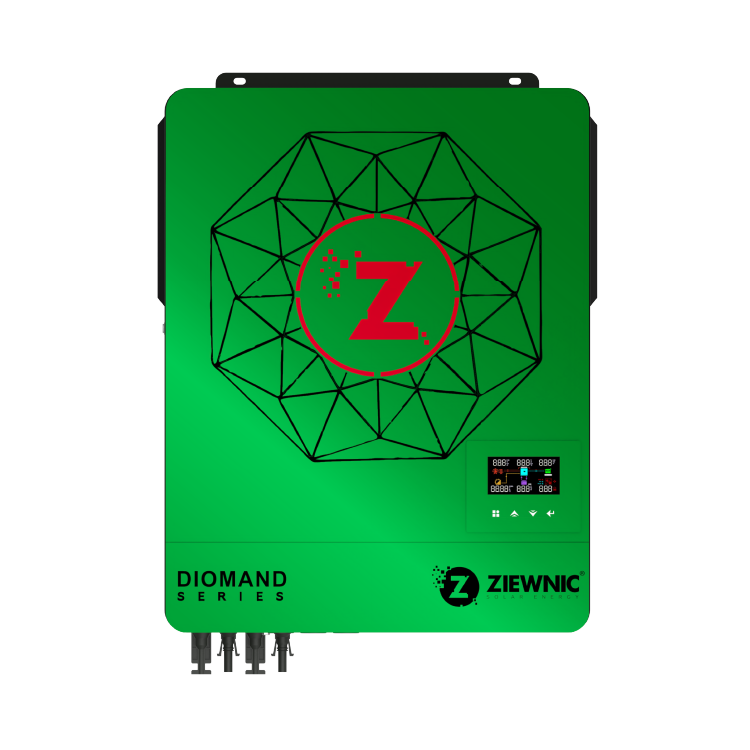

• Introducing 1st Time In Pakistan Real 5th Gen Inverter, Supporling high efficiency Mosfet, Chopper with bigger size
• DIAMOND Series Inverter supports Multiple operation modes (ON/OFF/MKS/KS)
• 100% Pure Sine Wave Solar Inverter
• Output power factor 1.0
• Optional Wi-Fi available for IOS/Android devices
• Inverter running with battery & without battery
• 1 button restore setting options in program (00)
• Battery equilizations in program (30)
• Record fault code feature in program (25)
• Adaptable to main Voltage / generator power
• Conformal coating to prevent from dust and humidity
• Built-in automatic electronics breaker for overload & short circuit protection
• New Color Screen LCD function design with touch buttons
• Built-in anti dust for harsh environment
• Compatible with all kinds of Lithium Batteries
• 98% Real time sharing
• Overload Protection on 120% Load
• Surge Capacity 2* Rated Power for 5 Seconds
• Battery charging current upto 300A (AC+Solar)
• MPPT Based Solar Charge Controller (160A)
• High PV input voltage range (90~550 VDC)
• Two output for normal and heavy load
• Maximum input current 27A
• Multiple operation modes (On Grid / Of Grid / Hybrid
• Grid-Tied net metering feature with 100% reverse grid feeding
• Builtin Zero export
• Two PV input parallel based MPPT controller for PV10000 & PV13000
• Designed and Engineered in Taiwan
